Description

Take to the streets with the new Vision X SAE street legal series lights. Our redesigned CG2 internals now feature our patented photon core along with our tuned mixed-precision optics to be able to be used on-road but still provide the same durability to handle any off-road adventure.

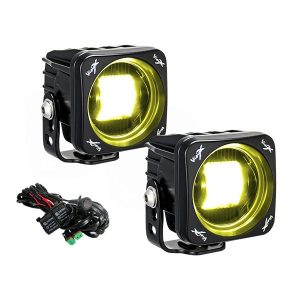

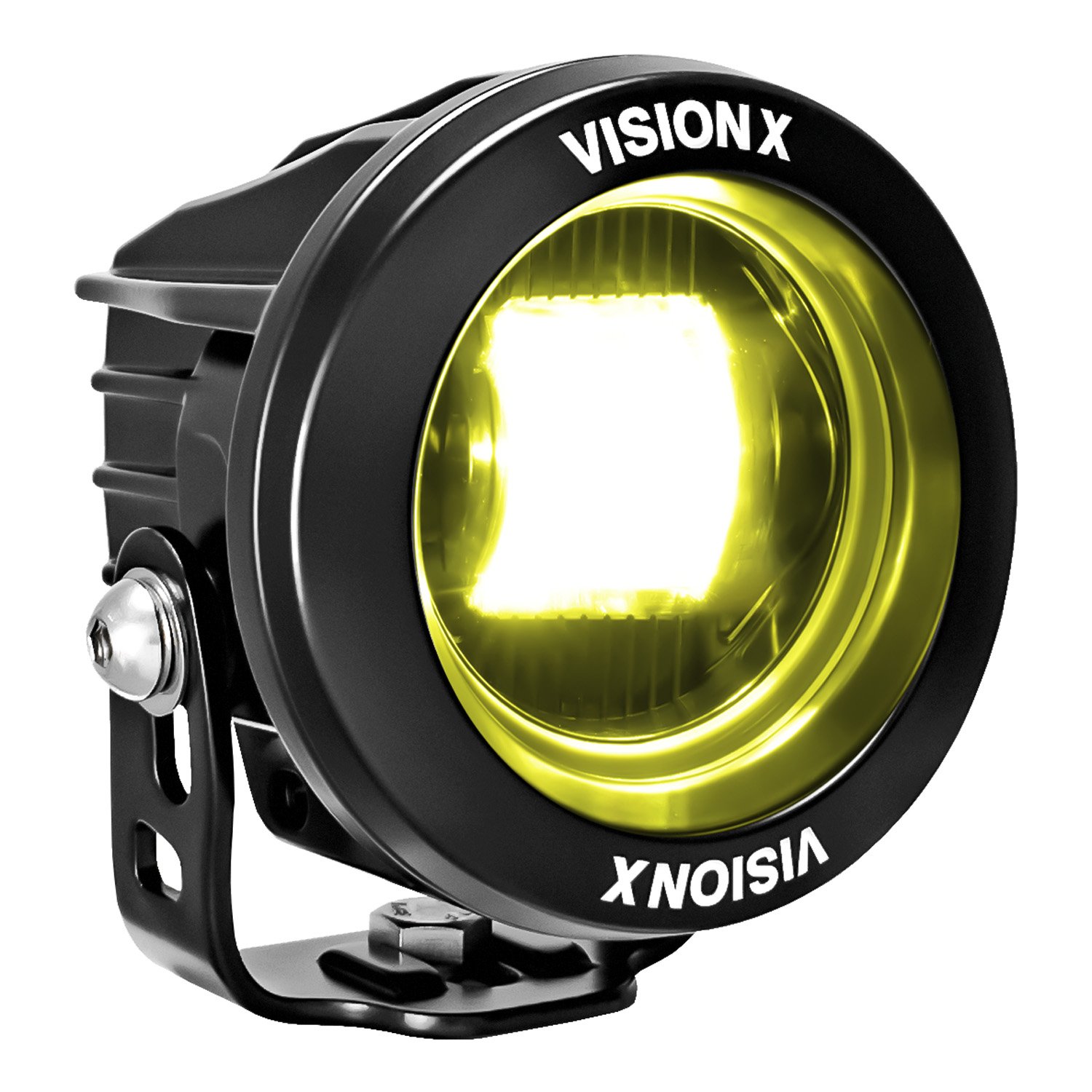

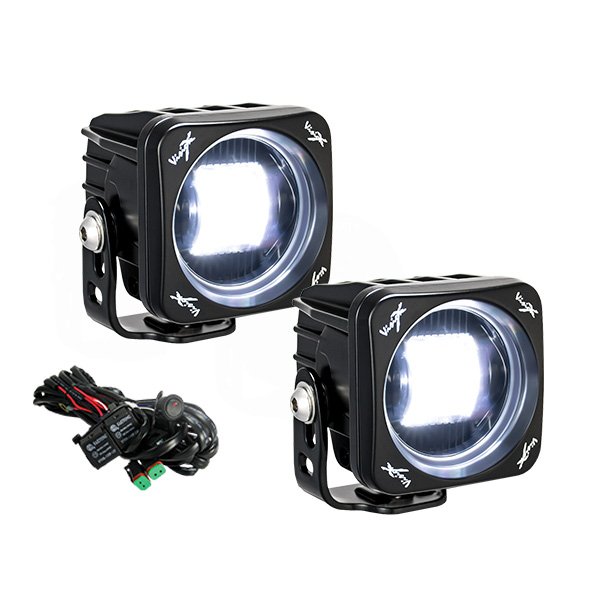

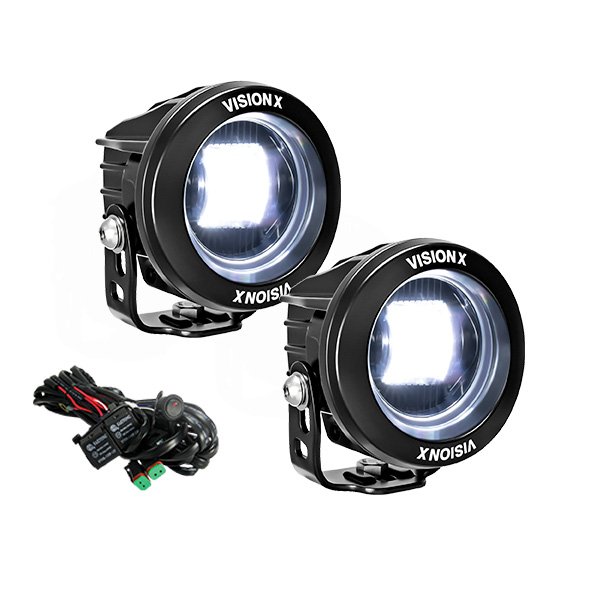

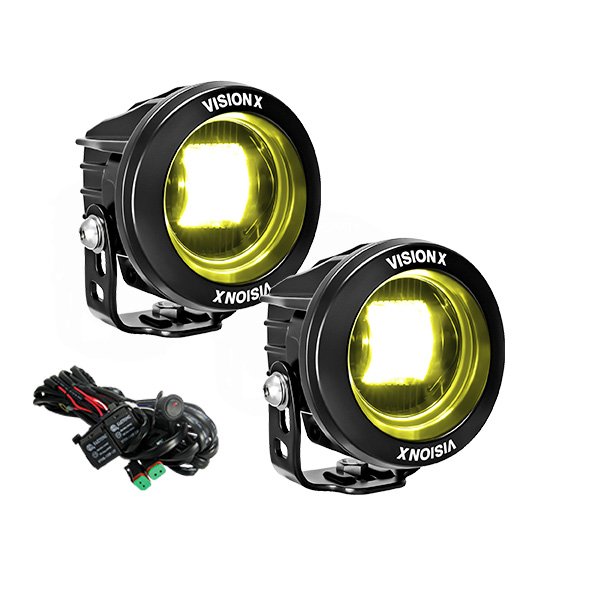

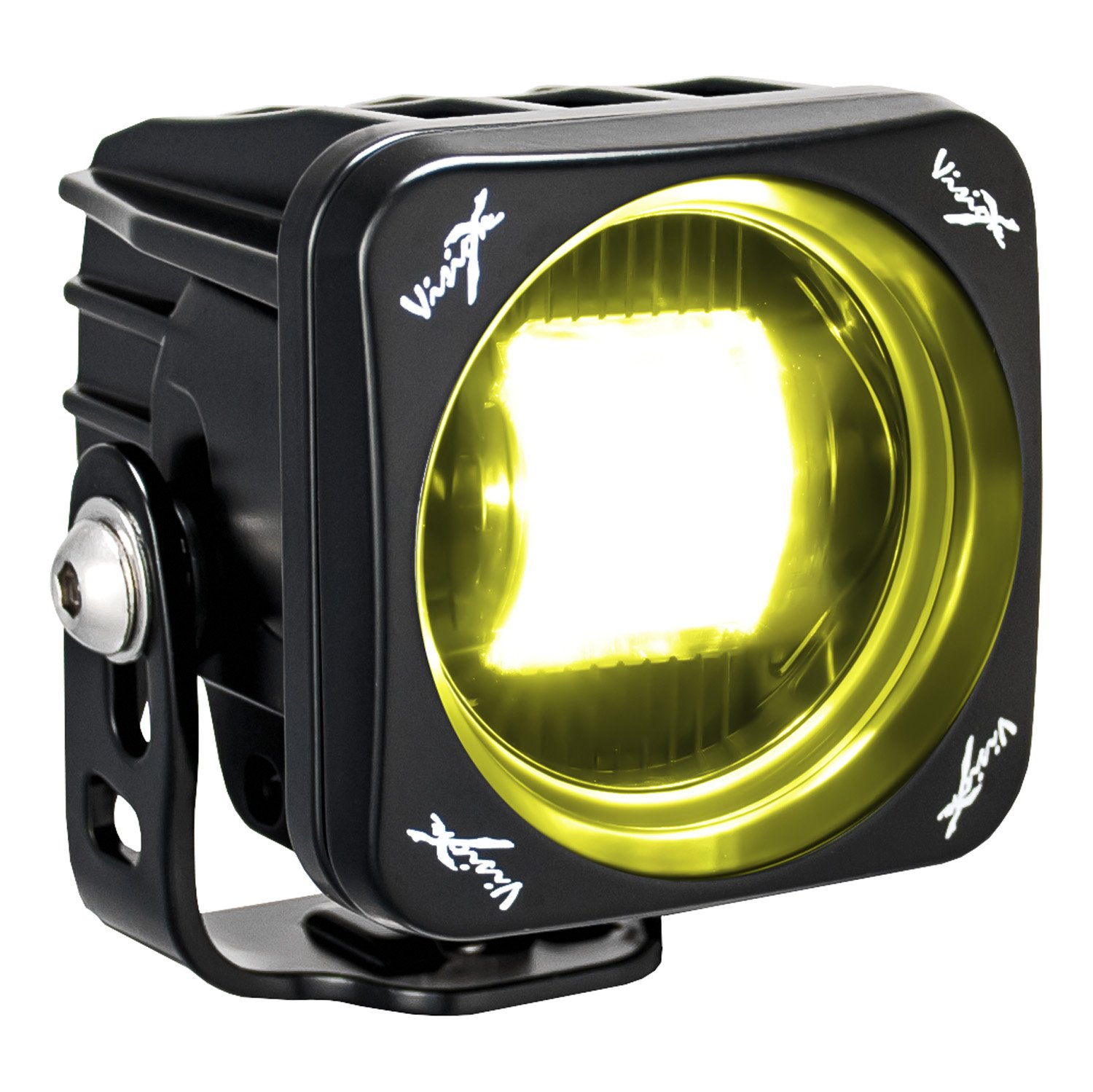

Choose between our smaller CG2 mini cannons for an ultra-wide (J583 compliant) fog beam or our 4.7” CG2 SAE Light Cannon for high beam (J581 compliant) applications. The SAE mini-cannon utilizes our new PLC optic technology to produce an ultra-wide elliptical beam that has a sharp cutoff to keep the light low to the ground and not blind oncoming traffic.


Key Features:
PLC (Photon Light Core) Optic Technology
SAE J583 Compliant for Fog Light Applications
Ultra-wide Elliptical Beam Pattern
Clear or Selective Yellow Lens Option
Highest Quality CREE LEDs
Plug And Play Harness Included


FEATURES
– PLC (Photon Light Core) Optic Technology
– SAE J583 Compliant for Fog Light Applications
– Ultra-wide Elliptical Beam Pattern
– Clear or Selective Yellow Lens Option
– Highest Quality CREE LEDs
– Plug And Play Harness Included


SPECIFICATIONS
Product LxWxH: (Square) 2.99×3.62×2.99 – (Round) 3.62×3.62×3.82
Input Voltage: 9-32V DC
AMP Draw: (Single) 1.67A – (Kit) 3.33A
Watts: (Single) 20W – (Kit) 40W
Raw Lumens: (Single) 2,160 lm – (Kit) 4,320 lm
Distance: 245-270 ft.
Beam Pattern: Elliptical Beam
