Description

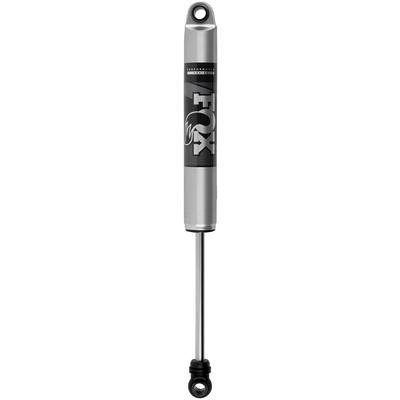

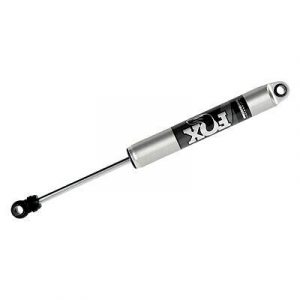

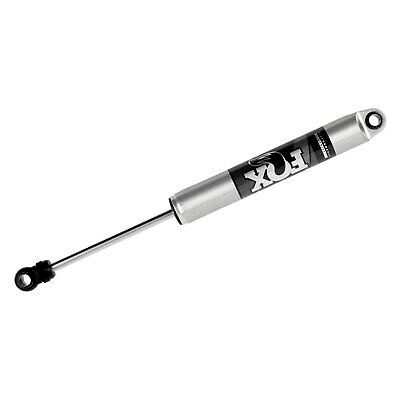

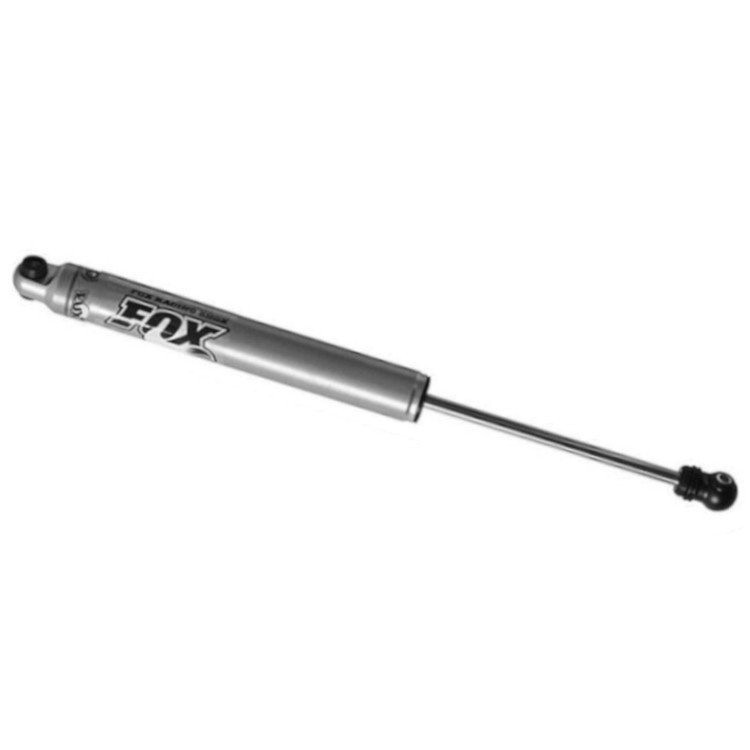

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

• 15-Current Nissan Patrol Y61
• Rear
• 0-2.5″ lift
• Does not fit leaf spring models
• Body: 2.0″ Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Body Plating: Clear-anodized for a durable finish
• Reservoir: Internal IFP mono-tube reservoir design
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8″ hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

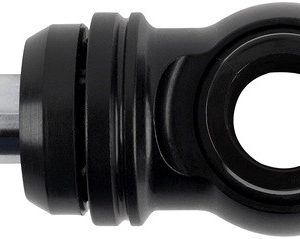

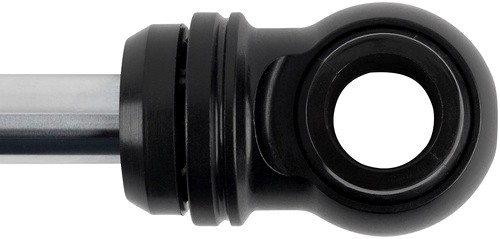

• Bushings: Quiet nitrile rubber allows for increased suspension articulation

INSTRUCTIONS:

• Installation Instructions (PDF)
