Description

Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

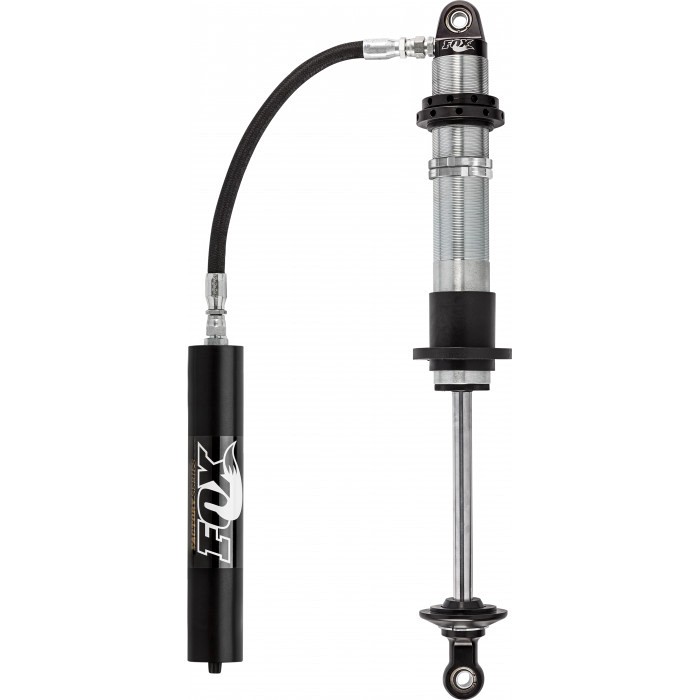

• Fox 2.5 Factory Series universal off-road shock
• Features: smooth bore and honed seamless steel body
• Zinc plated for a long-lasting finish
• Black anodized, CNC machined 6061-T6 billet aluminum components
• 7075 hard-anodized high-flow aluminum piston
• Tunable, velocity sensitive deburred valve shims
• High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• 1″ 17-4 H900 hard chrome plated stainless steel shaft
• Spherical, PFTE-lined, heat-treated alloy steel bearing
• Spring not included
• Spring preload ring and dual stage crossover ring adjustments
• Extended 25.43 in.
• Collapsed 17.43 in.
• Stroke 8.0 in.
• Custom valving
• Top and bottom mounts: 1/2 x 1.5 eyelets
• 2.5 by 14 remote reservoir with DSC – Dual Speed Compression adjustment
• -10 x 18 hose
• Sold individually

INSTRUCTIONS:

• Installation Instructions (PDF)
